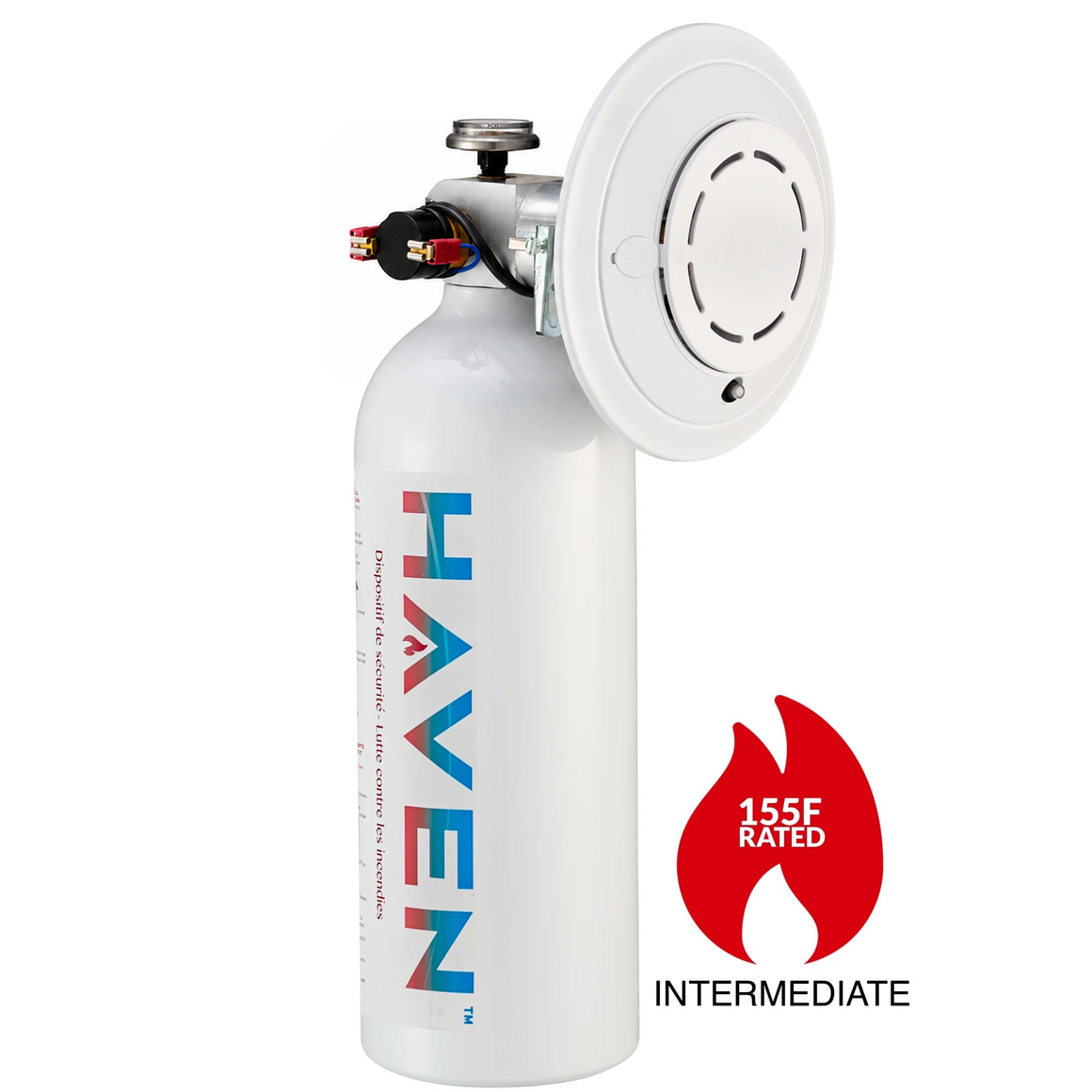

MODEL | Haven 3.0 |
---|---|
Capacity | 5lb |
Discharge Range | 10' x 10' = 100 sq.ft. |
Extinguisher Class | UL Listed ABC Dry Chemical Agent |
Operating Pressure | 175 psi |
Material | Aluminum |
Unit Weight | 9.2 lbs |
UL Listed Sprinkler Head Heat Activated At | 155°F (68°C) |
Haven SDS | Click Here For Link |
Propellant | High Purity Compressed Dry Nitrogen |
Diameter | 4 3/8" Inches |
Height | 16" Inches |
Unit Weight | 8.6 LB |
Ship Weight | 11 Lb |

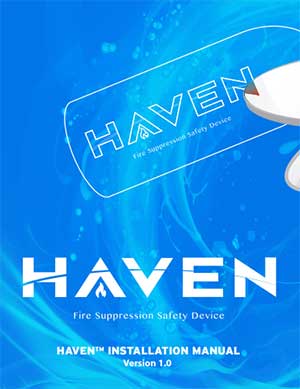

Installation Manual
For more information, download our installation manual to read or print.The file is in PDF format.


Easy to order and arrived in a timely manner. Easy to install. As a retired architect, I think it is a great idea to have a fire suppression device installed in the garage directly above the automobiles. We just built a garage next to our house with studio space above. I have two Havens installed in the garage.
looks well made. Have not had to use it. Installed in Kitchen.. Gene
I purchased 4 of the 5 lb units for my storage unit these things are great and a real peace of mind. Had a small issue with a unit and they replaced it right away! Great company and Great staff!

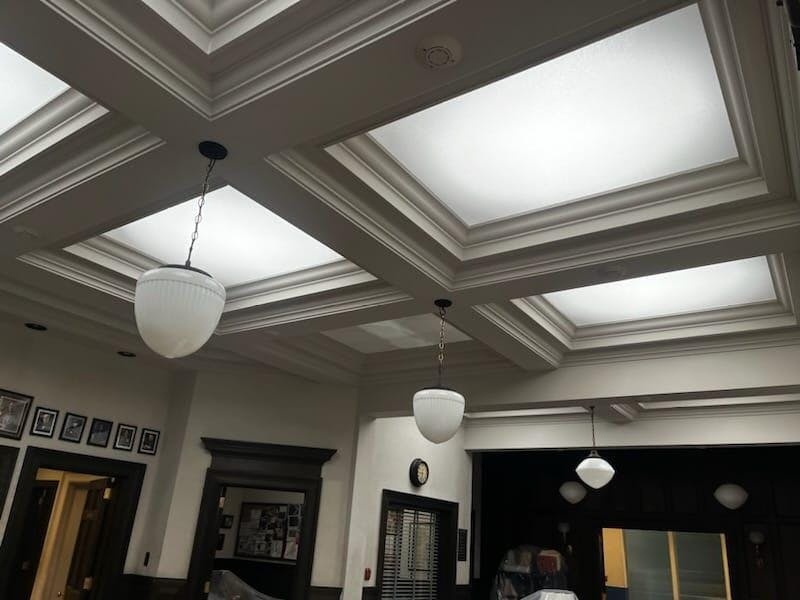

Excellent solution for the fire safety requirement on our movie sets simple low profile looks great
My office ceiling is concrete, which makes it difficult to mount this great product externally. I wish there was an external mounting solution available.
