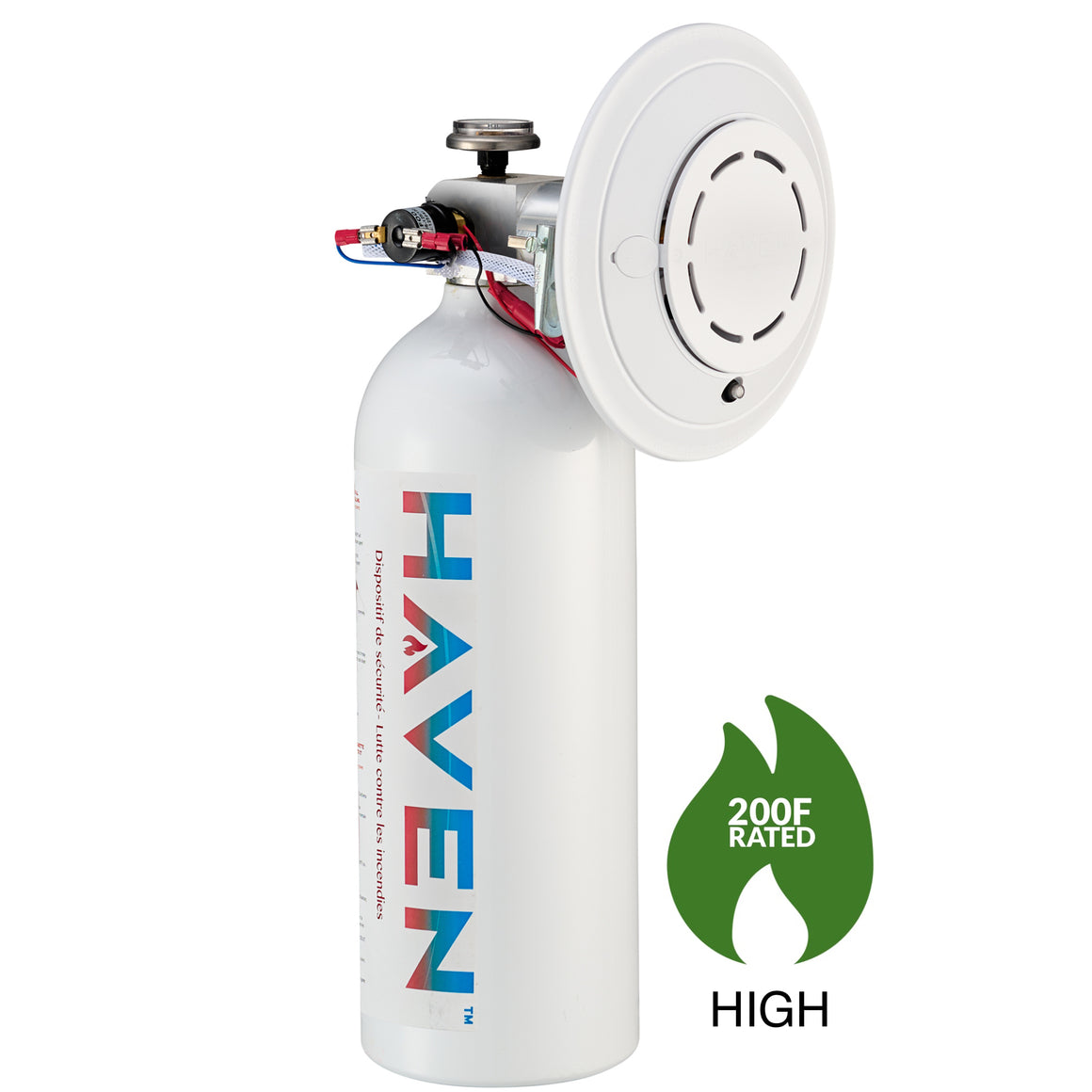

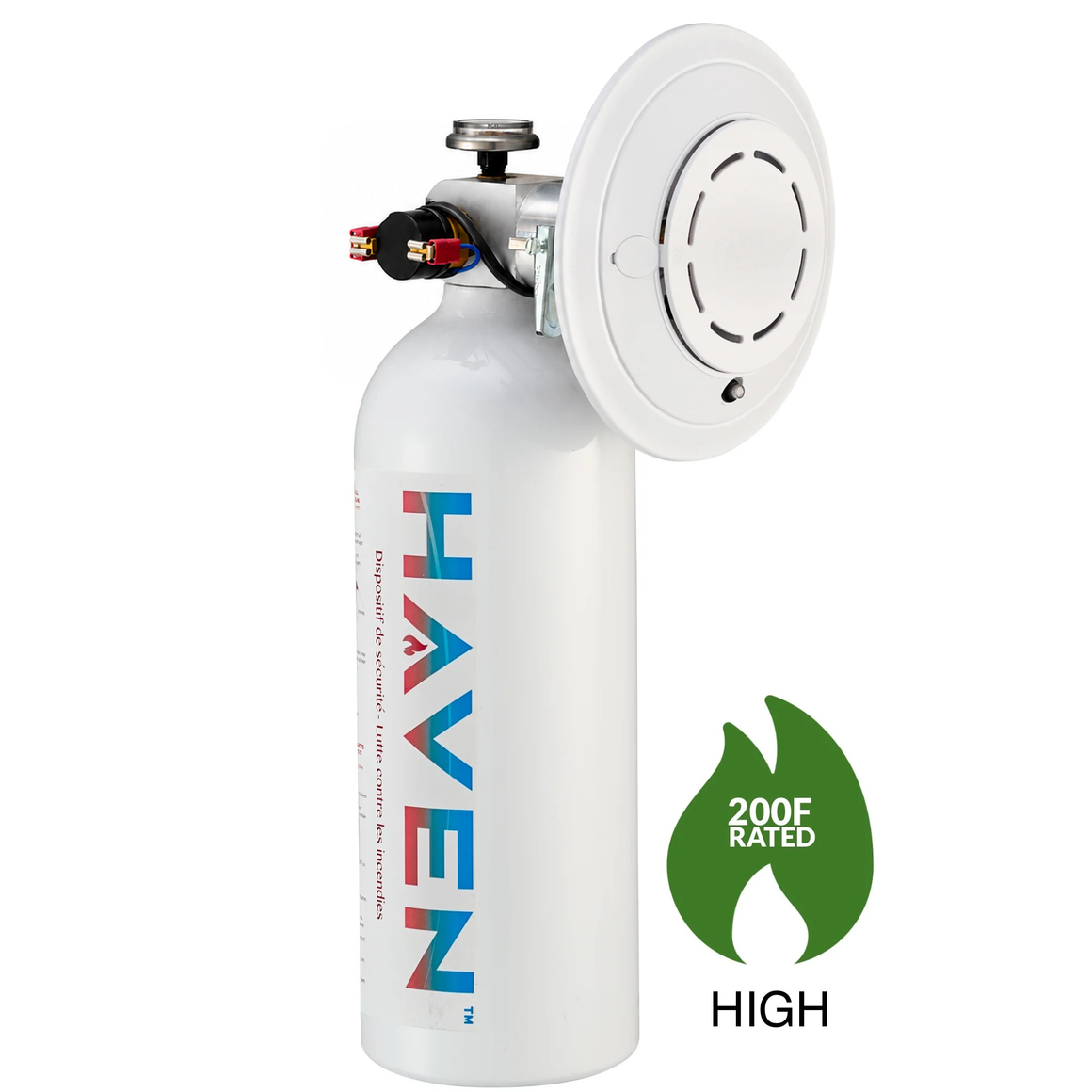

HAVEN Automatic Fire Suppressor 200°F (93°C)
Model HFS-200 · 5 lb eco-friendly ABC dry chemical
$299.99
Activation temperature
For hot spaces: attics, sheds and machinery rooms.
- Goes off automatically from heat: a UL-listed fuse opens at 200°F (93°C).
- Covers up to 10′ × 10′ (100 sq ft).
- UL-listed, eco-friendly ABC dry chemical.
- No power, wiring or piping needed. Installs in most ceiling cavities.
- 5-year device.
Questions? Contact us or call 855-285-5858
WARNING: Do not use in spaces where immobile or incapacitated persons are present.
In the box
- HAVEN fire suppressor
- Mounting hardware
- Installation instructions
Coverage calculator
Each HAVEN covers 10 ft x 10 ft (100 sq ft). Enter your room size.
About this HAVEN
HAVEN mounts in your ceiling and works on its own. When the air at the unit reaches 200°F (93°C), a UL-listed fuse opens and releases ABC dry chemical over a 10 ft x 10 ft area (100 sq ft). It suppresses the fire, provides valuable time to escape and helps prevent property damage.
No wiring, no power, no subscription. Always ready. It installs in most ceiling cavities, so it sits nearly flush and stays out of sight. Each unit protects for 5 years.

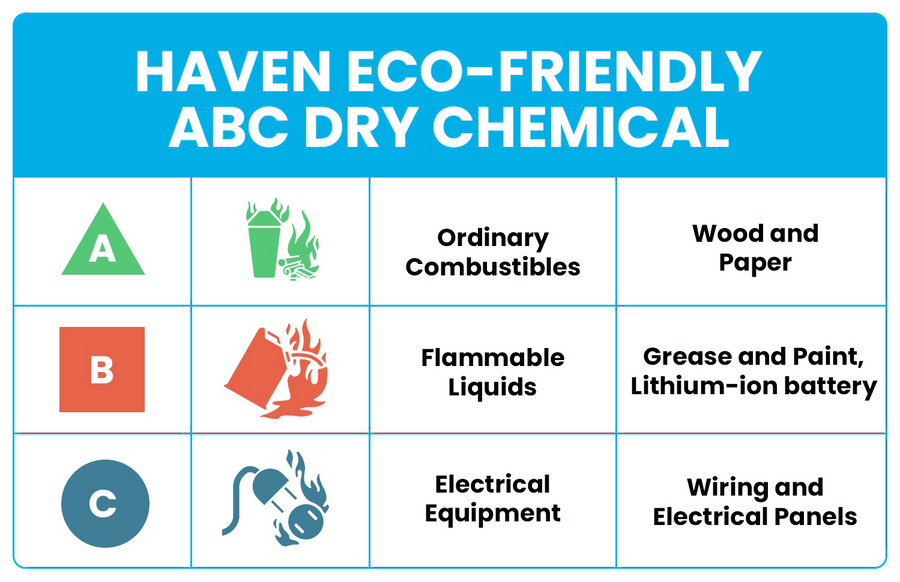

Dry chemical is graded by how much active agent it contains, and many extinguishers use 40-60% grades, with the rest being filler. HAVEN is charged with Super 90, a 90% grade of eco-friendly ABC dry chemical, so far more of what is inside is fighting the fire. And because it is a dry chemical, there is no water damage: it cleans up easily.
Put one wherever people sleep and along the way out: bedrooms, hallways and the paths out of your home. Add more where fires tend to start: kitchens, playrooms, garages, sheds and hunting camps.
Specifications
Model HFS-200 · 200°F (93°C)
| Model | HFS-200 |
|---|---|
| Extinguishing agent | UL-listed ABC dry chemical (Super 90, 90% active) |
| Capacity | 5 lb |
| Coverage range | 10′ × 10′ (100 sq ft) |
| Activation temperature | 200°F (93°C) |
| Activation method | UL-listed fuse |
| Operating pressure | 175 psi |
| Electronic pressure switch | Activates below 155 psi |
| Propellant | High-purity compressed dry nitrogen |
| Cylinder material | Aluminum |
| Diameter | 4 3/8″ (111 mm) |
| Height | 16″ (406 mm) |
| Unit weight | 8.6 lb (3.9 kg) |
| Gross charged weight | 9.2 lb (4.2 kg) |
| Ship weight | 11 lb (5.0 kg) |
| Service life | 5 years |
| Warranty | 1-year manufacturer's warranty (extension to 2 years available) |
Customer Reviews
How can I review something that hasn't been used yet, (and hopefully never will be). As far as installation goes, it's straight forward and simple. The installation manual is somewhat conflicting however. Under the 'Operation' heading, it states that "The HAVEN operates when the temperature in the area reaches or exceeds 135F". However, under the heading 'Precautions', there is a sticker that states the Haven is a 200F unit and ceiling temperature should not exceed 150F. So which is it?
Thanks for your review
The sticker is an amendment since you got the 200F model, which is newer than the 135F for which the manual was created for. Sorry for the confusion, and thanks for the feedback. We will correct and make it clearer in the future
Fits right where I need it
A very simple solution to protect my motorcycle shed. Construction is 2x8 floor joists (of 2 story shed) but not adequate clearance to fit bottle through specified hole.
